OBNZip — Intelligent Seismic Data Compressor for OBNs
1. Overview
Intelligent Seismic Data Compressor for OBNs (OBNZip) is a joint effort of LISHA, LVA, LaSin and Petrobras to investigate the possibility of applying Artificial Intelligence (AI) techniques within the paradigm of the Internet of Things (IoT) to compress seismic data produced by Ocean Bottom Nodes (OBNs). The project will also investigate techniques to efficiently manage the energy budget of such nodes, as well as alternative for them to communicate among themselves and with underwater vehicles and surface vessels.
2. Seismic Data Compressor
OBNZip main goal is to develop a system for compressing underwater seismic data in OBNs using artificial intelligence techniques and carry out exploratory studies on submarine wireless communication and energy management in OBNs. The compressor will support efficient communication and the respective AI models will increase the energy efficiency of the OBNs by selecting optimized operating modes of the OBNs.
2.1. Architecture

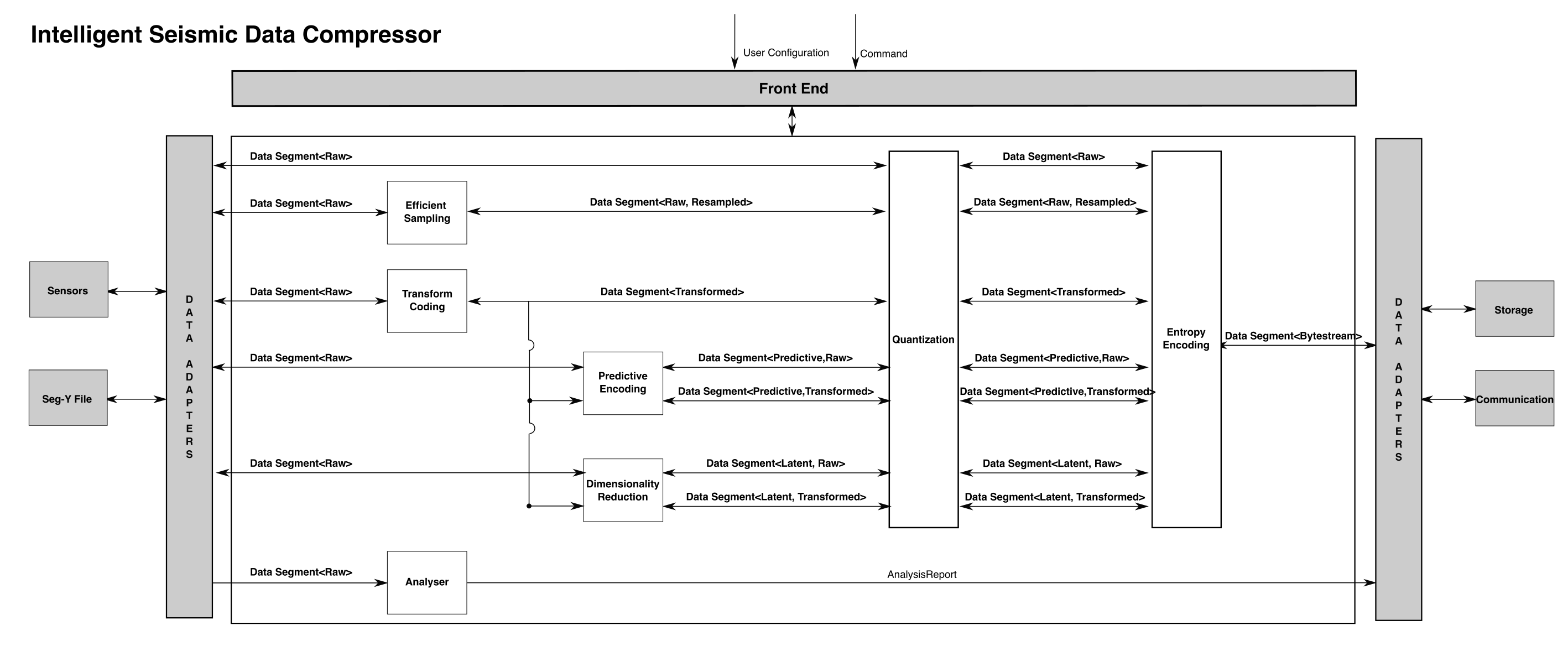

The architecture of the compressor developed is shown in Figure 1, where it possible to observe the differente stages concerninig differents blocks of data compression.
2.2. Results

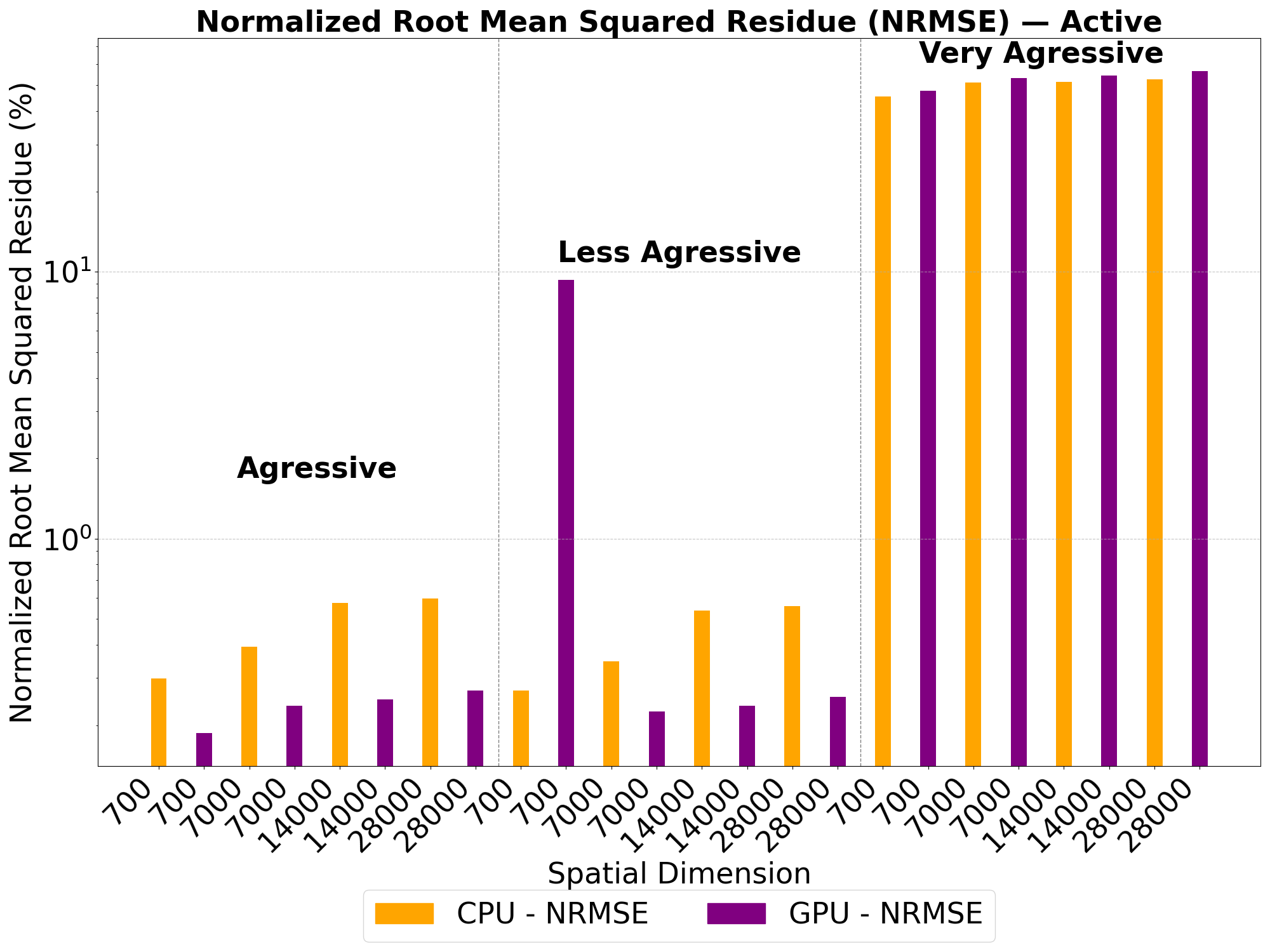

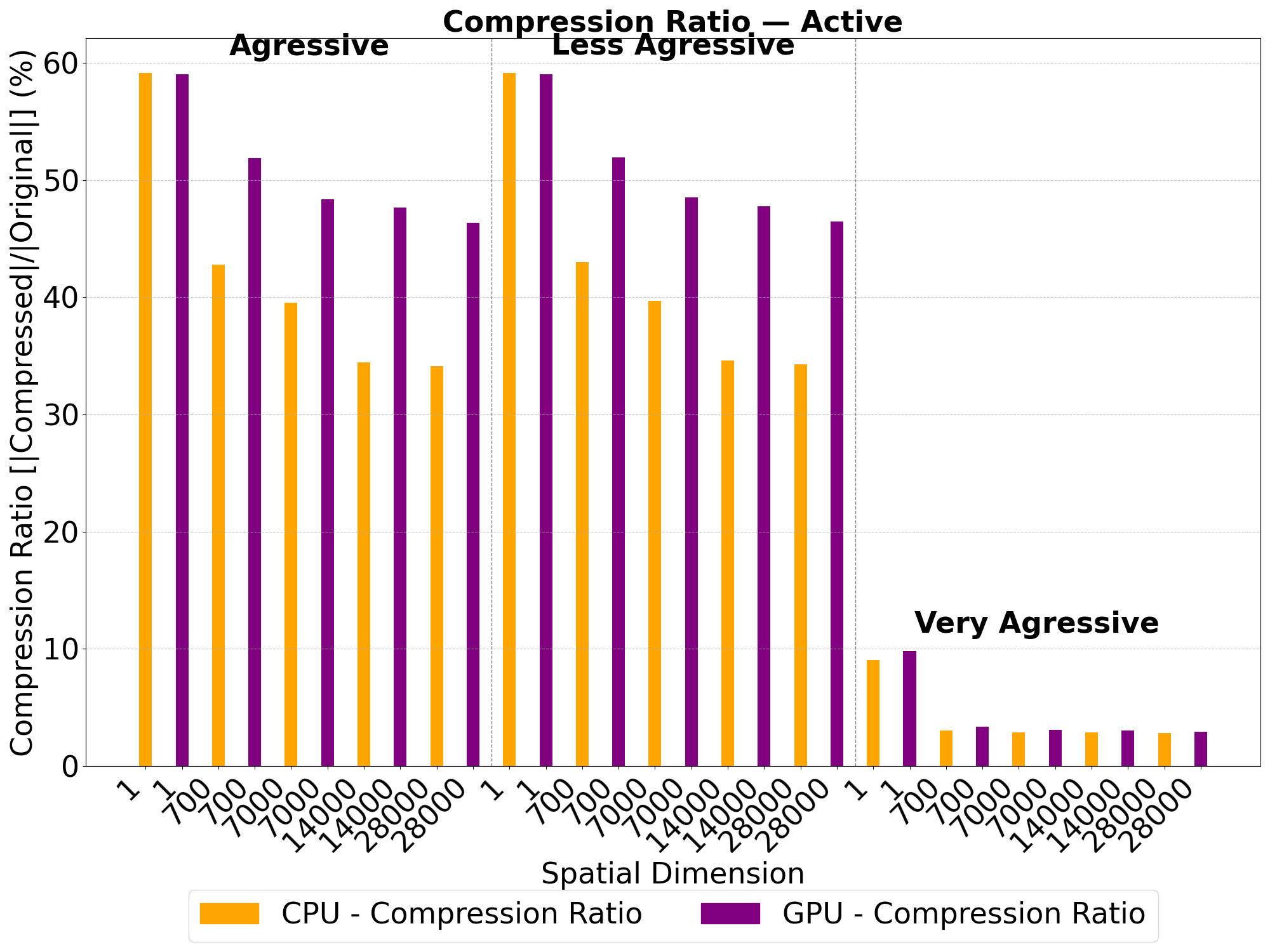

Tabel 1 shows a comparison of some results obtained with the OBNZip compressor in terms of compression rate and normalized residue energy global and in some frequency ranges. In addition, results are shown for passive and active data as well as for different compresison techniques.
| Data type | Method | Parameters | CR | NRE | NRE (0-20 Hz) | NRE (15-65 Hz) | NRE (60-100 Hz) | NRE (105-250 Hz) |
|---|---|---|---|---|---|---|---|---|
| Passive | DCT + LZW + Quantization | Energy Threshold=1% Quantization=1% | 4.0369:1 | 0.0304 | 0.0023 | 0.0061 | 0.0055 | 0.0186 |
| Passive | DCT + LZW + Quantization | Energy Threshold=10% Quantization=10% | 15.7746:1 | 0.3243 | 0.0244 | 0.1272 | 0.1240 | 0.0693 |
| Active | 2D DWT + LZW + Quantization | Energy Threshold=1% Quantization=1% Spatial Dimension=10 | 2.4320:1 | 0.0111 | 0.0009 | 0.0019 | 0.0018 | 0.0071 |
| Active | 2D DWT + LZW + Quantization | Energy Threshold=10% Quantization=10% Spatial Dimension=10 | 5.7863:1 | 0.2134 | 0.0929 | 0.0631 | 0.0244 | 0.0457 |

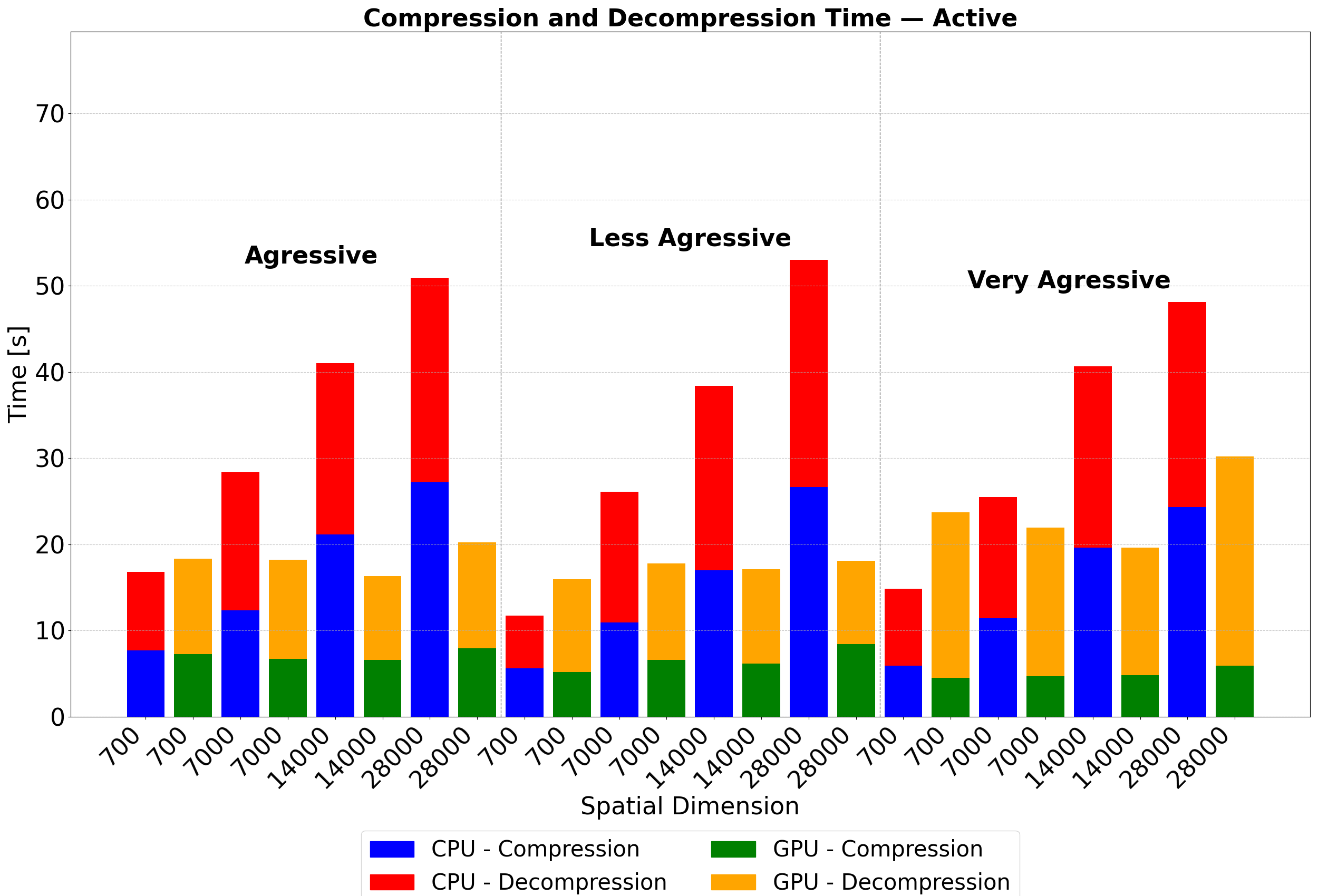

Figure 2 shows the OBNZip compressor performance in terms of time of execution for two implementations of the compression (Python and C++). In addition, the external time represents the whole execution time while the internal time represents only the time taken in the compression/decompression procession, not taking into account the compression setup. libraries import and etc.
3. Exploratory Studies
OBNZip project also aims to corry out exploratory studies on submarine wireless communication and energy management in OBNs, as briefly described below.
3.1. Energy Management
This objective will conduct an exploratory study on energy management in OBNs, including monitoring the energy available in the storage system, the orchestration of the operating modes of the various components of the OBN in terms of energy and recharging of storage systems. Resource scaling techniques, such as acoustic and thermal electric energy harvesting and a seawatter battery, are under development.
3.2. Underwater Communication
This exploratory study aims investigate about underwater wireless communication to determine the boundary conditions for application of the main technologies available in scenarios of interest to Petrobras, that is, deep marine waters. Two technologies are under investigation and tests: optical and acoustical communication. Experimental test have been carried out in water tanks and low cost prototypes are under development.
